Low Assembly EGH-CA/SA Series Linear Guideway

Main Technical Parameters and Design
1. Compact Design: The slider's shape is optimized to the extreme within the minimum space required for ball circulation and sealing, achieving minimal height.
2. Performance Balance:  Using a high-rigidity cage and optimized ball contact angle, the system's load capacity and rigidity are maintained as much as possible while reducing height.
3. Sealing and Lubrication: Equipped with compact end seals and potentially integrated grease reservoirs, ensuring good dust protection and long-lasting lubrication even in confined spaces.
4. Selection Considerations:
Confirm maximum height: Clearly define the maximum allowable installation height of the equipment; this is the first constraint for selection.
Calculate load: Under the premise of meeting height requirements, select the specifications that meet the load and lifespan requirements.
Choose mounting type: Select the CA type (side flange mounting) or SA type (top mounting) according to the equipment structure.

Applications
The EGH-CA/SA series is the perfect partner for the following space-sensitive equipment:
Precision electronic manufacturing: X-Y motion platforms for SMT placement machines, chip packaging machines, and PCB drilling machines.
Medical devices and laboratory equipment: Automated analyzers, DNA sequencers, and automatic microscope platforms.
Small automation: Desktop robots, small linear motor modules, and guiding mechanisms for precision dispensing machines.
Semiconductor and panel industry: Wafer handling robots, and space-constrained linear axes in LCD panel inspection equipment.

The EGH-CA/SA series low-profile linear guide is the culmination of engineering ingenuity in "space-constrained" design environments. It proves that high-performance linear guidance does not necessarily have to come at the cost of occupying a large amount of space. Choosing the EGH series means you can integrate a reliable, precise, and efficient linear motion core into your equipment, even within strict size constraints.  It's a key component for achieving miniaturization, integration, and performance balance in your equipment.

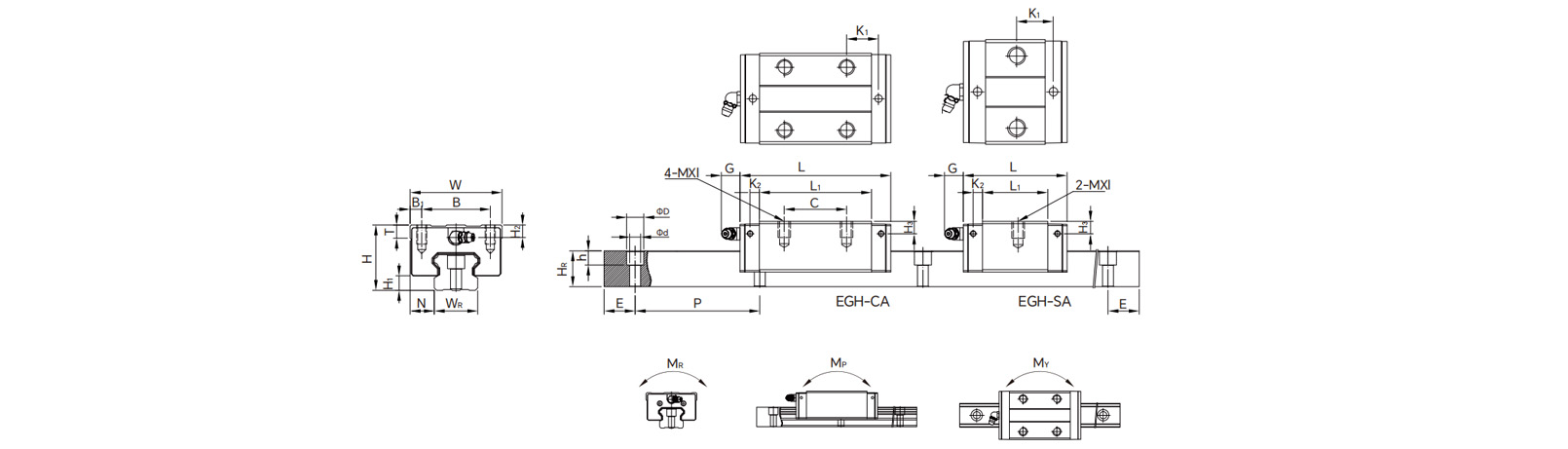

_Parameters

_Drawings

_{Supports Product Combination Selection}

_{Production Capacity}

Cyclone Milling Machines LWN160-6000mm Leistritz Cyclone milling machines imported directly from Germany, the ball screw shaft precision can be C3, C5, and C7 the max length can be 7000mm

Rolled Thread CNC Machines ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan. The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop We conduct nut assembly in a constant temperature workshop,  all workers having decades of work experience and zero clearance between the screw and nut.

Ball Screw Assembly Workshop One ball screw shaft matches one ball screw nut. Because each ball screw shaft has a very tiny different tolerance. There are dozens of different ball sizes for different screw shaft. Our ball screw shaft and nut can be interchanged with the Taiwan TBI ball screw shaft and nut very well.

_{Linear Guideway Selection}

Non-interchangeable type:

Note:
1.The roman numerals express a matched set of rails.
2.No symbol indicates standard protection (end seal and bottom seal)
ZZ:End seaL bottom sealand scraper
KK: Double seals, bottom seal and scraper
DD: Double seals and bottom seal
3.Block type HGL is the low profile design of HGH (square type), the assembled height is same as HGW (flange type) in same size.

Model Number of HG Rail:


Interchangeable type:


_{Linear Guideway Preload & Precision Instruction}

Preload Classes
offers three classes of standard preload for various applications and conditions.

Besides the standard top mounting type, WANGONG also offers the bottom mounting type of rails to customers.

Mounting from Top	Mounting from bottom

Acouracy Classes
Thp accuracy of HG series can be classified into normal (C), high (H), precision (P), super precision (SP), ultra precision (UP), five classes. Please choose the class by referring the accuracy of applied equipment.

Accuracy Standards

Acouracy of Running Parallelism
