SMP Series High Torque Single Diaphragm Coupling

Main Technical Parameters and Design

1. Core Structure:
Diaphragm Assembly:  Uses multiple superimposed pre-stressed stainless steel diaphragms.  The special curved surface and hole design ensure more uniform stress distribution when bearing torque and compensating for misalignment, resulting in a longer fatigue life.
Hubs: Typically made of aluminum alloy (for lightweight) or steel (for ultra-high torque), connected to the shaft using high-precision clamping sleeves or flange bolts, achieving keyless, backlash-free locking.

2. Key Performance:
High Torque Density: At the same outer diameter, its rated torque and maximum torque are far greater than those of comparable size jaw couplings.
High Balancing Grade: Precisely dynamically balanced before leaving the factory (usually G6.3 or higher), ensuring minimal vibration during high-speed operation and protecting bearings.
Environmental Resistance: All-metal structure, resistant to high temperatures, oil, and corrosion, suitable for harsh industrial environments.

3. Selection Considerations: In addition to torque, speed, and bore diameter, special attention should be paid to the "Misalignment Compensation Capability Chart" to ensure that the selected model meets the actual angular and radial misalignment requirements on site.

Applications
The SMP series is the preferred choice for high-end applications with demanding requirements for dynamic performance, precision, and reliability:
High-speed, high-precision machine tools: Spindle drives and ball screw drives for machining centers and CNC lathes. Industrial Robots: Direct connection between joint reducers and servo motors, requiring zero backlash and high responsiveness.
Semiconductor and Panel Equipment: Precision motion platforms for lithography machines, PCB drilling machines, and bonding machines.
High-end Printing and Inspection Equipment: Drive connections for digital printing presses and fly-by inspection systems.
Any application using high-performance servo motors where elasticity or hysteresis in the drive train is unacceptable.

The SMP Series High Torque Single Diaphragm Coupling is a critical bridge connecting the "power" and "actuation" ends in precision motion control systems. Through precise metal elasticity design, it perfectly resolves the traditional conflict between "rigid connection" and "flexible compensation." Choosing the SMP series means you are selecting top-tier performance, absolute reliability, and long-term maintenance-free operation for your equipment's core drive train – the foundation for building core competitiveness in high-end equipment and achieving superior motion control performance.

_Parameters

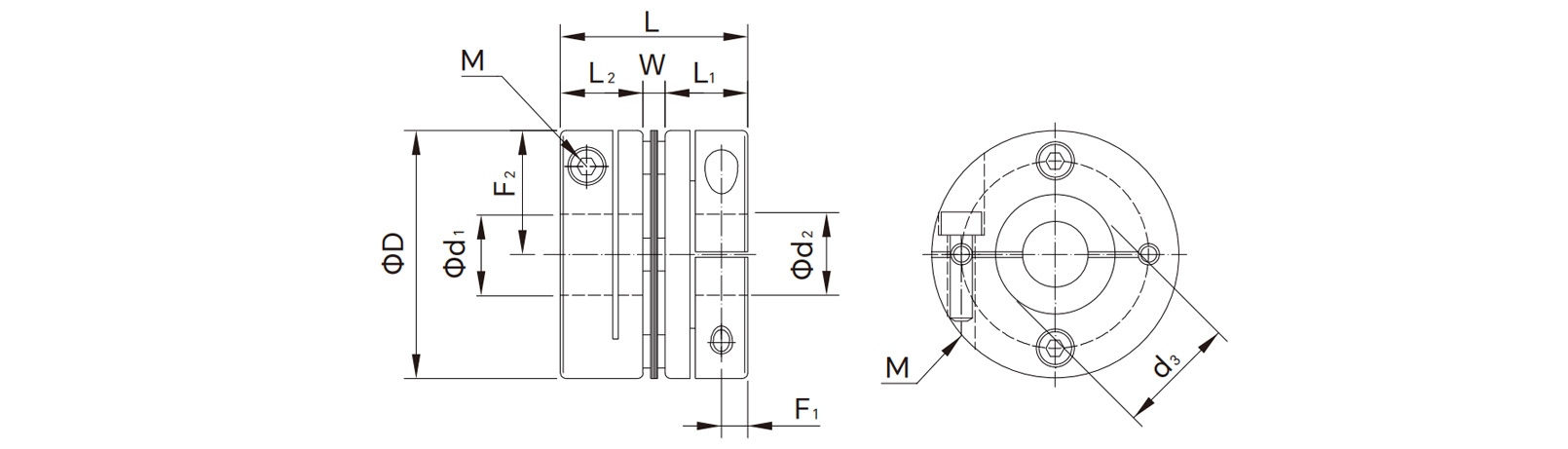

_Drawings
