Strong Dust-proof SFNI Series Ball Screw

Dual Top-Tier Configuration
High-Performance Core:  Utilizes large-sized ball bearings, optimized Gothic arch raceways, and double-nut preloading designs to ensure high rigidity, high load capacity, and backlash-free transmission.
Robust Protection Shell: The sealing system is "armor-grade." It typically includes: an external replaceable metal scraper (to remove large particles), multiple internal elastic sealing lips (to block fine dust), and a labyrinth gap (to isolate and expel contaminants).
Accuracy Level: Typically offers C5 or higher precision grades to meet the high-precision machining requirements of heavy-duty machine tools.
Specifications and Service: Covers a range of shaft diameters from medium to extra-large. Often used as a critical component, it provides more comprehensive technical support and customized services (such as special lubrication and adaptation to extreme environments).

Application Scenarios
The SFNI series is the "heart" of the following top-tier industrial equipment when facing harsh working environments:
Heavy-duty CNC Machine Tools: Large vertical/horizontal machining centers, gantry milling machines, boring machines, dealing with metal chips and coolant.
Harsh Environment Automation: Precision transmission units in casting production lines, mining machinery, and building materials processing equipment.
Energy and Special Vehicles: Pitch control systems in wind turbines operating in dusty environments, and precision actuators in special engineering vehicles.
Any high-value equipment that prioritizes "extreme reliability" over cost.

The SFNI series heavy-duty dustproof ball screw is the answer to the demanding industrial challenges faced by ball screw technology. It represents a leap from "components" to "system solutions." Choosing the SFNI series means not only selecting a transmission component for your equipment, but also investing in "performance insurance" for your entire machine, protecting against environmental risks and ensuring continuous, efficient production. It's a crucial element in building top-tier equipment reliability and brand reputation.

_Parameters

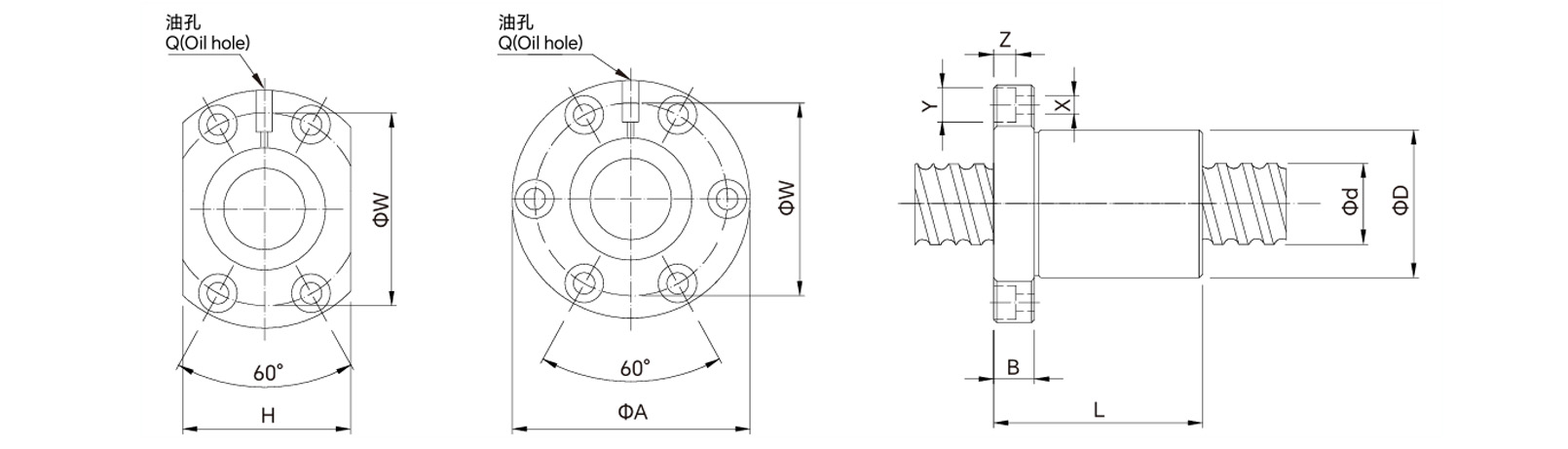

_Drawings

_{Supports Product Combination Selection}

_{Production Capacity}

Cyclone Milling Machines LWN160-6000mm Leistritz Cyclone milling machines imported directly from Germany, the ball screw shaft precision can be C3, C5, and C7 the max length can be 7000mm

Rolled Thread CNC Machines ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan. The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop We conduct nut assembly in a constant temperature workshop,  all workers having decades of work experience and zero clearance between the screw and nut.

Ball Screw Assembly Workshop One ball screw shaft matches one ball screw nut. Because each ball screw shaft has a very tiny different tolerance. There are dozens of different ball sizes for different screw shaft. Our ball screw shaft and nut can be interchanged with the Taiwan TBI ball screw shaft and nut very well.

_{Model Code Explanation}

_{Design Accuracy}

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1～1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms	Reference	Definition	Allowable
Travel Compensation	T	Travel compensation is the deduction between specified and nominal travel in the useful travel. A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load. Therefore"T "” is usually a negative value. Note:if no compensation is needed,specified travel is the same as nominal travel.	Table 1.1.2
Actual Travel		Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel		Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation	E	Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations	e	Travel variations is the coverage of 2 lines drawn parallel to the mean travel. Maximum width of variation within the travel length. Actual width of variation for the length of 300mm taken anywhere within the travel length. Wobble error, actual width of variation for one revolution (2πt radian)	Table 1.1.2 Table 1.1.3 Table 1.1.3

Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Table 1.1.3 International standard of accuracy grade for ball screw

Grade	C0	C1	C2	C3	C5	C7	C10
	3.5	5	7	8	18	50	210
	2.5	4	5	6	8

1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.

_{Testing Equipment}
WANGONG has a comprehensive quality control management system and advanced testing instruments.

Profilometer Test and inspect the contour, two-dimensional dimensions, two-dimensional displacement, and contact angle of the ball screw nut.

Hardness Tester Used to measure the surface hardness and core hardness of ball screw materials.

Roundness Measuring Instrument Used to measure the roundness, cylindricity, coaxiality, concentricity, flatness,parallelism,verticality, radial deviation, thickness deviation, radial runout, radial total runout, diameter measurement, straightness, inclination, taper, diameter contour tolerance, straight contour tolerance, etc. of nuts.

Roughness Measuring Instrument The roughness measuring instrument can measure the surface roughness of various machined parts, including flat surfaces, inclined surfaces, cylindrical surfaces, curved surfaces, small holes, grooves, and axles.
