Flange Type SFI Series Ball Screw

Home · Products · Ball Screw · Flange Type SFI Series Ball Screw

Flange Type SFI Series Ball Screw

The flange type SFI series ball screw is a high-performance, heavy-duty precision transmission component. It typically features superior raceway design, preloading structure, and sealing technology, providing greater load capacity, rigidity, and smoother operation than standard flange type series in applications such as CNC machine tools, injection molding machines, and heavy-duty automation equipment.

Technology

The core positioning of the SFI series is "performance enhancement beyond the standard." It surpasses the basic flange series in key performance aspects, providing assurance for more demanding working conditions.

Characteristic Dimensions SFI Series (High-Performance Flange Type) Standard flange type (SFU series)
Core Positioning Heavy-duty, high rigidity, extended service life, suitable for demanding operating conditions. Economical and versatile, meeting most conventional requirements.
Load Capacity and Rigidity Enhanced. Typically incorporates larger balls, optimised raceway contact angles or dual-nut preload designs, delivering significantly improved axial rigidity. Suitable for general load applications.
Operational Smoothness and Precision Superior. Optimised manufacturing processes and preload control ensure smoother motion and more stable precision retention. Smooth operation with precision conforming to standards.
Sealing and Protection Typically equipped with higher-grade seals (e.g., multi-lip seals) as standard, offering superior dust and water resistance to protect internal raceways. Standard-fit basic dust seal.
Expected Service Life Longer. Under equivalent load conditions, superior materials and design typically yield a longer calculated service life. Standard service life.
Cost Positioning Higher, representing an investment in performance. Economical with high value for money.

Performance Enhancement Design
Enhanced Preloading:  Often uses double-nut preloading or offset preloading methods to effectively eliminate axial clearance and significantly improve system rigidity, suitable for applications requiring high response speed and high positioning accuracy.
Optimized Raceway: The raceway profile and surface roughness are optimized to reduce noise, minimize wear, and improve load-carrying efficiency.
Accuracy Levels:  Typically offers multiple precision grades such as C5 and C7, with some models having higher accuracy reserves than the standard series to meet the demanding requirements of machine tools and other applications.
Specifications and Compatibility: The flange mounting dimensions of the nut may not be exactly the same as the standard SFU series; special attention is required during selection. A wide range of shaft diameters is available, from small to large.

Application Scenarios
The Flange type SFI series ball screw is designed for heavy-duty or precision applications with higher demands on performance, reliability, and lifespan:
Industrial Machine Tools and Heavy Equipment: Feed axes of CNC machine tools (machining centers, lathes), large stamping presses, and injection molding machine injection units.
High-Precision Automation: Heavy-duty motion axes of precision assembly centers and automated testing equipment, and the seventh axis ground rail of robots.
Energy and Transportation: Wind power generation pitch control systems, and transmission components for rail transit.
Any application requiring stronger, more durable transmission performance than the standard series.

The Flange type SFI series ball screw is an engineering solution for demanding industrial applications. It is not just a transmission component, but a key investment aimed at improving the overall performance limits and long-term operational reliability of the entire machine. Choosing the SFI series means selecting stronger power, more stable precision, and longer-lasting reliability for your core equipment, thereby building a solid performance advantage in the fierce market competition.

Parameters

Model No. d l Da Dimension Load Rating Rigidity Weight
D A B L W H x Y Z Q n Ca(kgf) Coa(kgf) Kgf/um Kg
SFI1604-4 16  2.381  30  49  10  45  39  34  4.5  4.5  M6 1x4 973  2406  32  0.246
SFI1605-4 3.175  30  49  10  50  39  34  4.5  4.5  M6 1x4 1380  3052  33  0.220
SFI1610-3 10  3.175  34  58  10  57  45  34  5.5  9.5  5.5  M6 1x3 1103  2401  27  0.382
SFI2004-4 20  2.381  34  57  11  46  45  40  5.5  9.5  5.5  M6 1x4 1066  2987  37  0.312
SFI2005-4 3.175  34  57  11  51  45  40  5.5  9.5  5.5  M6 1x4 1551  3875  39  0.308
SFI2504-4 25  2.381  40  63  11  46  51  46  5.5  9.5  5.5  M6 1x4 1180  3795  43  0.386
SFI2505-4 3.175  40  63  11  51  51  46  5.5  9.5  5.5  M8 1x4 1724  4904  45  0.396
SFI2510-4 10  4.762  46  72  12  85  58  52  6.5  11  6.5  M6 1x4 2954  7295  51  0.802
SFI3204-4 32  2.381  46  72  12  47  58  52  6.5  11  6.5  M6 1x4 1296  4838  49  0.46
SFI3205-4 3.175  46  72  12  52  58  52  6.5  11  6.5  M8 1x4 1922  6343  52  0.472
SFI3210-4 10  6.35  54  88  15  90  70  62  14  8.5  M8 1x4 4805  12208  62  1.14
SFI4005-4 40  3.175  56  90  15  55  72  64  14  8.5  M8 1x4 2110  7988  59  0.840
SFI4010-4 10  6.35  62  104  18  93  82  70  11  17.5  11  M8 1x4 5399  15500  72  1.548
SFI5010-4 50  10  6.35  72  114  18  93  92  82  11  17.5  11  M8 1x4 6004  19614  83  1.924
SFI6310-4 63  10  6.35  85  131  22  98  107  95  14  20  13  M8 1x4 6719  25358  95  2.674
SFI8010 4 80  10  6.35  105  150  22  98  127  115  14  20  13  M8 1x4 7346  31953  109  3.90

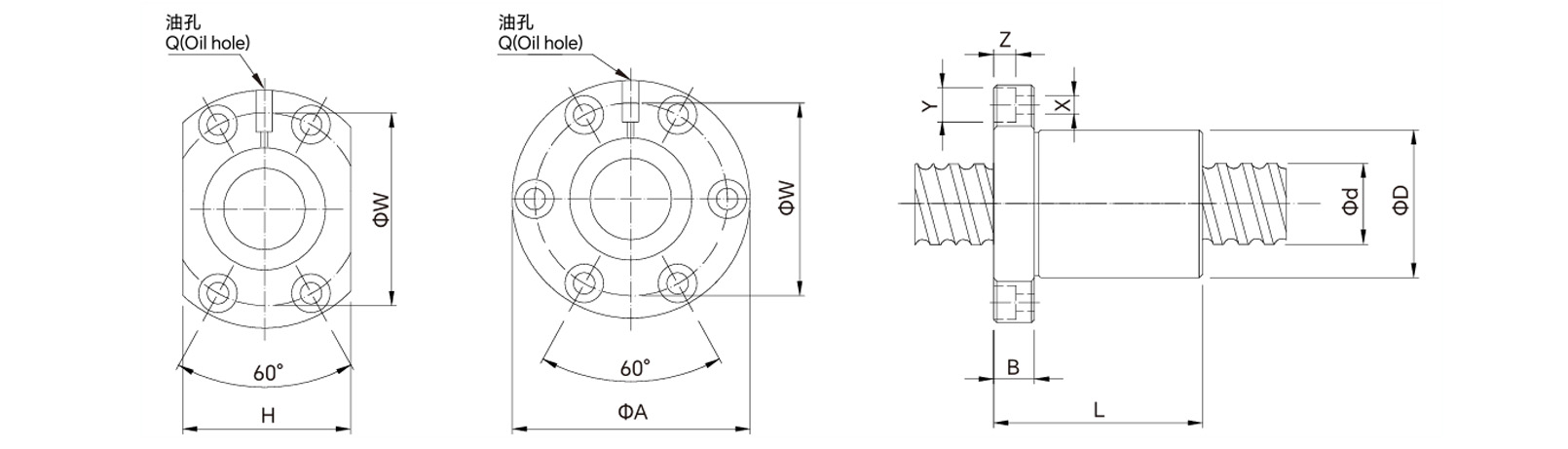

Drawings


Supports Product Combination Selection

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Reference torque kgf.cm Effective threading length mm
Below 4000 4000~10000 or less
Slenderness 1:below 40 Slenderness1:40~1:60 -
Grade Grade Grade
More than the following C0 C1 C2,C3 C5 C0 C1 C2,C3 C5 C1 C2,C3 C5
2 4 ±35% ±40% ±45% ±55% ±45% ±45% ±55% ±65% - - -
4 6 ±25% ±30% ±35% ±45% ±38% ±38% ±45% ±50% - - -
6 10 ±20% ±25% ±30% ±35% ±30% ±30% ±35% ±40% - ±40% ±45%
10 25 ±15% ±20% ±25% ±30% ±25% ±25% ±30% ±35% - ±35% ±40%
25 63 ±10% ±15% ±20% ±25% ±20% ±20% ±25% ±30% - ±30% ±35%
63 100 - - ±15% ±20% - - ±20% ±25% - ±25% ±30%

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.

Testing Equipment
WANGONG has a comprehensive quality control management system and advanced testing instruments.

Profilometer

Test and inspect the contour, two-dimensional dimensions, two-dimensional displacement, and contact angle of the ball screw nut.

Hardness Tester

Used to measure the surface hardness and core hardness of ball screw materials.

Roundness Measuring Instrument

Used to measure the roundness, cylindricity, coaxiality, concentricity, flatness,parallelism,verticality, radial deviation, thickness deviation, radial runout, radial total runout, diameter measurement, straightness, inclination, taper, diameter contour tolerance, straight contour tolerance, etc. of nuts.

Roughness Measuring Instrument

The roughness measuring instrument can measure the surface roughness of various machined parts, including flat surfaces, inclined surfaces, cylindrical surfaces, curved surfaces, small holes, grooves, and axles.
