Flange Type SFU Series Ball Screw

Home · Products · Ball Screw · Flange Type SFU Series Ball Screw

Flange Type SFU Series Ball Screw

The SFU series flange-type ball screws are mainstream precision transmission components for automation equipment. They feature an integrated flange and nut design, achieving high-precision, high-efficiency linear motion conversion and significantly simplifying the installation structure. They are widely used in various industrial automation scenarios.

Technology

Characteristic Dimensions SFU Series Flanged Ball Screws Conventional sliding screw mechanisms
Mounting Method Integrated flange design enables direct bolt-on mounting to equipment, simplifying structure for convenient and secure installation Typically require additional nut supports and complex installation procedures.
Transmission Efficiency Exceptionally high efficiency (85%-98%) requires minimal drive torque, delivering significant energy savings Low efficiency (generally <50%), with significant friction losses.
Motion Accuracy Achieves backlash-free transmission with high positioning accuracy, excellent repeatability and responsiveness Exhibits backlash, prone to crawling phenomena, and offers low precision.
Rigidity & Load Capacity Preload enhances axial rigidity; flange structure improves mounting stability and load capacity Moderate rigidity with limited load-bearing capacity.
Service Life Minimal rolling friction wear, with service life exceeding sliding screws by several times Rapid wear due to sliding friction, resulting in short service life.
Motion Performance Smooth operation without vibration, enabling high-speed and micro-feed applications Prone to crawling at low speeds, with poor high-speed performance.

Main Technical Parameters
Specification Range: Standard shaft diameters range from Φ12mm to Φ100mm, and lead ranges from 4mm to 20mm, meeting diverse needs from fine-tuning to rapid movement.

Accuracy Class: Standard accuracy is typically C7, an economical precision level sufficient for most automation equipment requirements.

Nut Structure: Common internal circulation design, resulting in a more compact structure and lower operating noise. Some models utilize a "waist-shaped" nut or metal return valve for enhanced performance.

Optional Configurations: Custom machining of the end effector (e.g., milling keyways, drilling) is supported, and it can be matched with standard support bases (BK/BF, FK/FF series, etc.) to provide complete solutions.

Application Scenarios: With the above advantages, the SFU flange-type series is ideal for the following fields:

General Industrial Automation: Automated production lines, assembly machinery, and material handling modules. CNC and Laser Equipment: Laser cutting machines, engraving machines, feed axes of small and medium-sized CNC machine tools.

Precision Instruments: Printing machinery, measuring equipment, laboratory precision platforms.

Other Fields: Robotics, semiconductor equipment, medical devices, and other applications requiring precise linear motion.

The SFU series flange-type ball screw is a cost-effective transmission solution that integrates high precision, high efficiency, long lifespan, and easy installation. Its robust and reliable design makes it a universally preferred choice for engineers seeking to improve equipment performance and reliability.

Parameters

Model No. d I Da Dimension Load Rating Rigidity Weight
D A B L W H X Q n Ca(kgf) Coa(kgf) Kgf/um Kg
SFU1204-3 12  2.381  22/24 42  35  32  30  4.5  M5 1x3 902  1884  26  0.138
SFU1604-4 16  2.381  28  48  10  40  38  40  5.5  M6 1x4 973  2406  32  0.184
SFU1605-3/4 3.175  28  48  10  42/50 38  40  5.5  M6 1x3/4 1380  3052  32  0.19
SFU1610-2/3 10  3.175  28  48  10  44/57 38  40  5.5  M6 1x2/3 1103  2401  26  0.22
SFU2004-4 20  2.381  36  58  10  42  47  44  6.6  M6 1x4 1066  2987  38  0.294
SFU2005-3/4 3.175  36  58  10  44/51 47  44  6.6  M6 1x3/4 1551  3875  38  0.316
SFU2010-2/3 10  3.175  36  58  10  44/60 47  44  6.6  M6 1x4/3 1551  3875  38  0.32
SFU2504-4 25  2.381  40  62  10  42  51  48  6.6  M6 1x4 1180  3795  43  0.384
SFU2505-3/4 3.175  40  62  10  44/51 51  48  6.6  M6 1x3/4 1724  4904  45  0.35
SFU2510-3/4 10  4.762  40  62  12  70/85 51  48  6.6  M6 1x3/4 2954  7295  50  0.484
SFU3204-4 32  2.381  50  80  12  44  65  62  M6 1x4 1296  4838  51  0.658
SFU3205-4 3.175  50  80  12  52  65  62  M6 1x4 1922  6343  54  0.588
SFU3210-3/4 10  6.35  50  80  12  74/90 65  62  M6 1x3/4 4805  12208  61  0.832
SFU4005-3/4 40  3.175  63  93  14  45/55 78  70  M8 1x4 2110  7988  63  0.97
SFU4010-3/4 10  6.35  63  93  14  74/93 78  70  M8 1x3/4 5399  15500  73  1.246
SFU5005-4 50  3.175  75  110  16  55  93  85  11  M6 1x4 6004  19614  85  1.82
SFU5010-4  10  6.35  75  110  16  93  93  85  11  M8 1x4 6004  19614  85  1.82
SFU05020-4  20  7.144  75  110  16  138  93  85  11  M8 1x4 7142  22588  94  2.674
SFU6310-4  63  10  6.35  90  125  18  98  108  95  11  M8 1x4 6719  25358  99  2.576
SFU6320-4 20  9.525  95  135  20  149  115  100  13.5  M8 1x4 11444  36653  112  4.888
SFU8010-4  80  10  6.35  105  145  20  98  125  110  13.5  M8 1x4 7346  31953  109  9.016
SFU8020-4 20  9.525  125  165  25  154  145  130  13.5  M8 1x4 12911  47747  138  9.016
SFU10020-4 100  20  9.525  150  202  30  180  170  155  17.5  M8 1x4 14303  60698  162  10

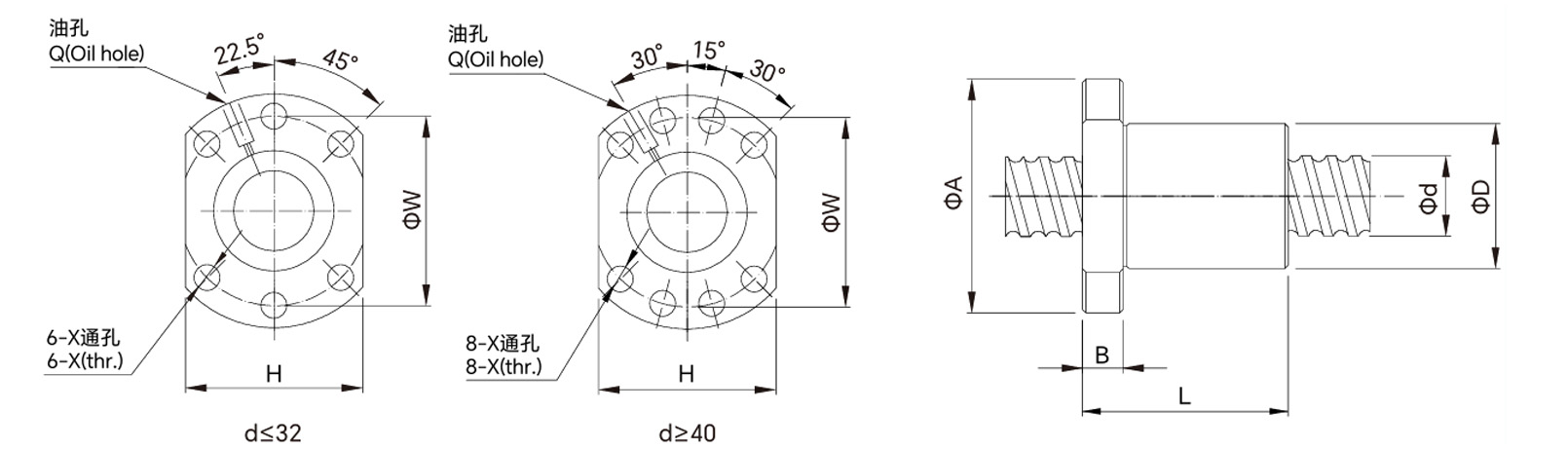

Drawings



Supports Product Combination Selection

Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.

Model Code Explanation

①Nominal Model
S F I
S: Single nut D: Double nut O: Off set double nut F: With flange C: Without flange NI: NI type nut
U
NU: NU type nut A: A type nut (A solution for slide table) Y: Y type nut U: DIN type nut K: K type nut S: S type nut (A solution for slide table)
②Threading Direction ③Nominal Diameter ④Lead
L: Left R: Right Unit:mm
⑤Number of Turns (Turn·Row)
Turn:T:1 A:1.5(or 1.7/1.8) B:2.5/2.8 C:3.5 D:4.8 ex:(2.5x2 =B2)
⑥Flange Type
N: Not cutting S: Single cutting D: Double cutting
⑦Product Code ⑧Accuracy Grade ⑨Overall Length of Shaft
G: Grind F: Rolled C0, C1, C2, C3, C5, C7, C10 Unit: mm

Axial Clearance and Preload Value Number of Nut
PO, P1, P2, P3, P4 (Leave blank if only one nut is required)
Ex:Install two nuts on a shaft B2
Nut Surface Treatment Shaft Surface Treatment
S: Standard S: Standard
B1: Black Oxidation B1: Black Oxidation
N1: Hard Chrome Plating N1: Hard Chrome Plating
N3: ickel Plating N3: Nickel Plating

Design Accuracy

1-1-1 Lead/Travel Accuracy

According to the standard of JIS,we classified our lead accuracy through E,e,e3oo and e2m four main regulations.As figure 1.1.1~1.1.3 shown in below, all the definition and tolerance are specified.To test the accumulated travel deviations for grade C7 and C10, the tolerance wll be chosen in random 30omm of useful length and evaluated if it is qualified with the e300 table of 1.1.3.

Fig 1.1.1 Diagram of Lead Accuracy

Terms Reference Definition Allowable
Travel Compensation T Travel compensation is the deduction between specified and nominal travel in the useful travel.
A slightly smaller value compared with nominal travel is often selected by customer, to compensate for an expected elongation caused by temperature rise or external load.
Therefore"T "” is usually a negative value.
Note:if no compensation is needed,specified travel is the same as nominal travel.
Table 1.1.2
Actual Travel Actual travel is the axial displacement of the nut relative to the screw shaft.
Mean Travel Mean travelis the linear best fit line of actual. This could be obtained by the leastsquares method. This line represents the tendency of actual travel.
Mean Travel Deviation E Mean travel deviation is the deduction between mean travel and specified travel within travel length.
Travel Variations e

Travel variations is the coverage of 2 lines drawn parallel to the mean travel.
Maximum width of variation within the travel length.
Actual width of variation for the length of 300mm taken anywhere within the travel length.
Wobble error, actual width of variation for one revolution (2πt radian)
Table 1.1.2
Table 1.1.3
Table 1.1.3


Table 1.1.2 Mean Travel Deviation (±E) and Travel Variation (e) (JIS B 1192)

Grade C0 C1 C2 C3 C5 C7 C10
Travel Length (mm) Over Incl. ±E e ±E e ±E e ±E e ±E e e e
100 3 3 3.5 5 5 7 8 8 18 18 ±50/300mm ±210/300mm
100 200 3.5 3 4.5 5 7 7 10 8 20 18
200 315 4 3.5 6 5 8 7 12 8 23 18
315 400 5 3.5 7 5 9 7 13 10 25 20
400 500 6 4 8 5 10 7 15 10 27 20
500 630 6 4 9 6 11 8 16 12 30 23
630 800 7 5 10 7 13 9 18 13 35 25
800 1000 8 6 11 8 15 10 21 15 40 27
1000 1250 9 6 13 9 18 11 24 16 46 30
1250 1600 11 7 15 10 21 13 29 18 54 35
1600 2000 18 11 25 15 35 21 65 40
2000 2500 22 13 30 18 41 24 77 46
2500 3150 26 15 36 21 50 29 93 54
3150 4000 30 18 44 25 60 35 115 65
4000 5000 52 30 72 41 140 77
5000 6300 65 36 90 50 170 93
6300 8000 110 60 210 115
8000 10000 260 140
10000 12500 320 170

Table 1.1.3 International standard of accuracy grade for ball screw

Grade C0 C1 C2 C3 C5 C7 C10
3.5 5 7 8 18 50 210
2.5 4 5 6 8



1-1-2 Axial Play

Axial play of WANGONG's precision ball screw is shown below:

Table 1.1.4 Classification of Axial Play

Grade P0 P1 P2 P3 P4
Axial Play Yes No No No No
Preload No No Light Medium Heavy

Excessive preload increases the friction torque and generates heat which wll reduce the life expectancy. However, insufficient preload will reduce stifness and increase the possibility of lost motion. WANGONG recommends that the preload applied on CNC machine tools should not heavier than 8% of the dynamic load; 5% for industrial automation X-Y table.

Table 1.1.5 The reference spring force of (P2)

Model No. Spring Force (Kg) Single Nut Spring Force(Kg) Double Nut
1605 0.1~0.3 0.3~0.6
2005 0.1~0.3 0.3~0.6
2505 0.2~0.5 0.3~0.6
3205 0.2~0.5 0.5~0.8
4005 0.2~0.5 0.5~0.8
2510 0.2~0.5 0.5~0.8
3210 0.3~0.6 0.5~0.8
4010 0.3~0.6 0.5~0.8
5010 0.3~0.6 0.8~1.2
6310 0.6~1.0 0.8~1.2
8010 0.6~1.0 0.8~1.2


Table 1.1.6 Axial Play (Po) Clearance in the Axial Direction of Rolled and Grind Ball Screw

Nominal Diameter Rolled Ball Screw Clearance in the Axial Direction (max.) Ground Ball Screw Clearancein the Axial Direction (max.)
Φ04~Φ14 miniature ball screw 0.05 0.015
Φ15~Φ40 middle size of ball screw 0.08 0.025
Φ50~Φ100 big size of ball screw 0.12 0.05

1-1-3 Definition of Mounting Accuracy and Tolerance on Ball Screw

The main items of the mounting accuracy of ball screw are listed in below.
(1) Periphery run-out of the supporting part of the screw shaft to the screw groove.
(2) Concentricity of a mounting portion of the shaft to the adjacent ground portion of the screw shaft.
(3) Perpendicularity of the shoulders to the adjacent ground portion of tha screw shaft.
(4) Perpendicularity of the nut flange to the axis of the screw shaft.
(5) Concentricity of the ball nut diameter to the screw groove.
(6) Parallelism of the mounting surface of a ball nut to the screw groove.
(7) Total run-out of the screw shaft to the axis of the screw shaft.
All WANGONG ball screws are manufactured, inspected and guaranteed to be within specifications.

Fig 1.1.2 Mounting Accuracy and Tolerance

1-1-4 Preload Torque
As figure 1.1.3 shown in below, it specified allthe type of preload torque generated by rotating a preloaded ball screw.

Fig 1.1.3 Descriptions of preload torque

Glossary

1. Preload
To generate the inner force inside the ball screw to decrease the
clearance and increase the rigidity, a set of one gage ( approximately 2μ) larger steel balls is filled inside the nut or two nuts which are executing mutual displacement in axial direction.
2. Preload dynamic torque
The dynamic torque required for continuously rotating the screws shaft or the nuts under unload condition and the preload has applied to the ballscrews.
3. Reference torque
The targeted preload dynamic torque Fig 1.1.3-(1)
4. Torque variation values
The variation values of the targeted preload torque variation rates are specified.Take a positive or negative value relative to the reference torque.
5. Torque variation rate
The variation ratio of reference torque.
6. Actual torque
The actual measured preload dynamic torque of the ball screws.
7. Average actual torque
The arithmetic average of the maximal and minimal actual
torque values measured when the nuts are doing reciprocating
movements.
8. Actual torque variation values
After the nut doing reciprocating movements on the effective
length of the thread, the biggest variation tested will be the actual
torque variation value, which is covered between the positive and negative minimum value relative to the actual torque.
9. Actual torque variation rate
The rate of actual torque variation values in relation of the average
actual torque.

Table 1.1.7 Permissible ranges of toque variation rates

Reference torque kgf.cm Effective threading length mm
Below 4000 4000~10000 or less
Slenderness 1:below 40 Slenderness1:40~1:60 -
Grade Grade Grade
More than the following C0 C1 C2,C3 C5 C0 C1 C2,C3 C5 C1 C2,C3 C5
2 4 ±35% ±40% ±45% ±55% ±45% ±45% ±55% ±65% - - -
4 6 ±25% ±30% ±35% ±45% ±38% ±38% ±45% ±50% - - -
6 10 ±20% ±25% ±30% ±35% ±30% ±30% ±35% ±40% - ±40% ±45%
10 25 ±15% ±20% ±25% ±30% ±25% ±25% ±30% ±35% - ±35% ±40%
25 63 ±10% ±15% ±20% ±25% ±20% ±20% ±25% ±30% - ±30% ±35%
63 100 - - ±15% ±20% - - ±20% ±25% - ±25% ±30%

Remarks: 1. Slenderness is the value of dividing the screws shaft outside diameter with the screws shaft threading length.

Testing Equipment
WANGONG has a comprehensive quality control management system and advanced testing instruments.

Profilometer

Test and inspect the contour, two-dimensional dimensions, two-dimensional displacement, and contact angle of the ball screw nut.

Hardness Tester

Used to measure the surface hardness and core hardness of ball screw materials.

Roundness Measuring Instrument

Used to measure the roundness, cylindricity, coaxiality, concentricity, flatness,parallelism,verticality, radial deviation, thickness deviation, radial runout, radial total runout, diameter measurement, straightness, inclination, taper, diameter contour tolerance, straight contour tolerance, etc. of nuts.

Roughness Measuring Instrument

The roughness measuring instrument can measure the surface roughness of various machined parts, including flat surfaces, inclined surfaces, cylindrical surfaces, curved surfaces, small holes, grooves, and axles.
