High Assembly HGH-CA/HA Series Linear Guideway

Home · Products · Linear Guideway · High Assembly HGH-CA/HA Series Linear Guideway

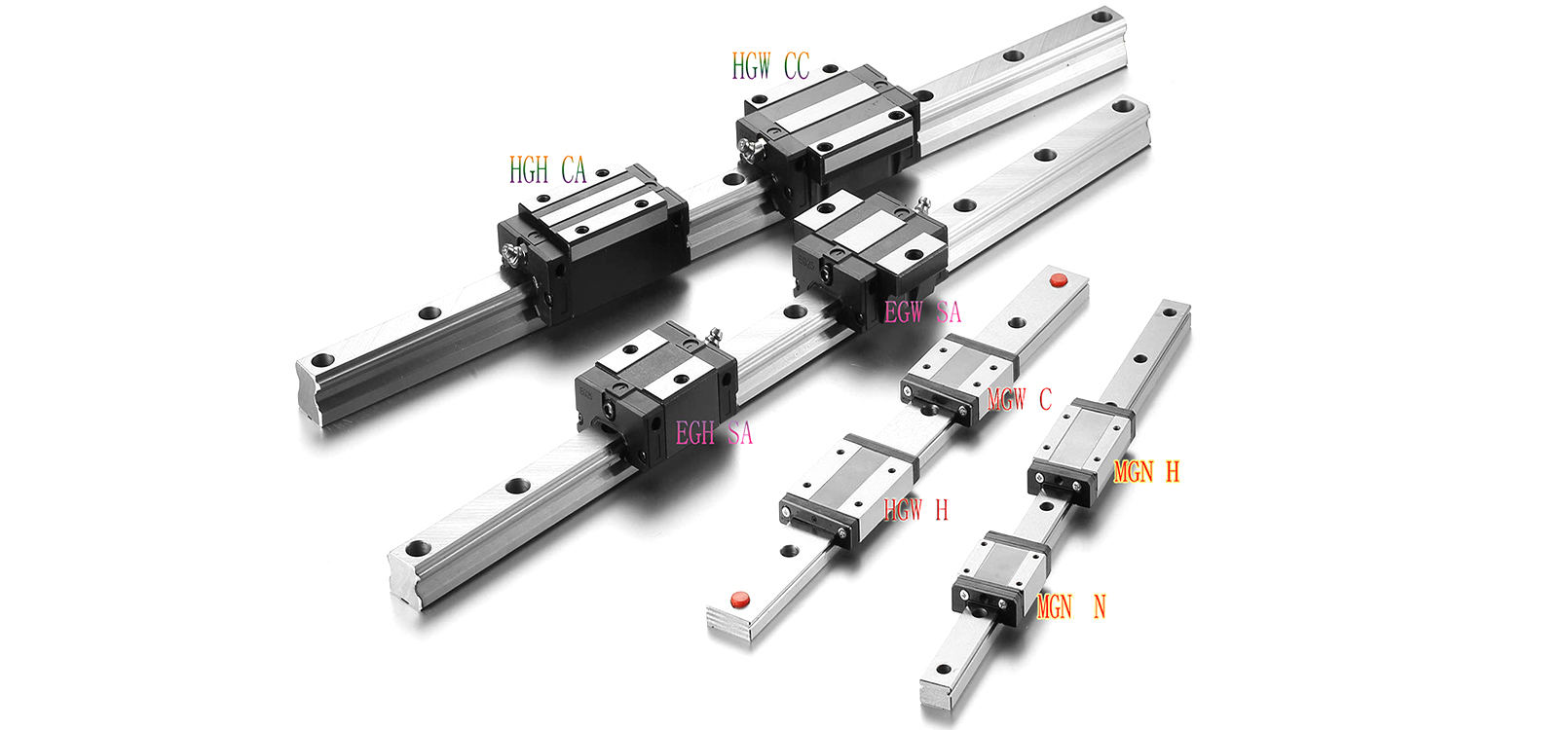

High Assembly HGH-CA/HA Series Linear Guideway

The HGH-CA/HA series are high-assembly (high-profile) ball-type linear guideways. High assembly refers to the relatively greater height of the slider, which provides greater load moment capacity and higher rigidity. This series features a four-way equal load design, offering excellent load-bearing capacity in radial, anti-radial, and lateral directions. Precise manufacturing processes ensure high operating accuracy, smoothness, and long service life, meeting the demands of most demanding industrial applications.

Inquiry

PREV: High Assembly HGW-CC/HC Series Linear Guideway Next: No next article

Technology

Key Features and Advantages

Performance characteristics	HGH-CA/HA Series High-Assembly Guide Rails	Low-profile guide rails (for comparison)	Core Values
Structural rigidity	Extremely high. The raised slider structure provides a greater torque-carrying span and offers exceptional resistance to overturning (torque resistance), with minimal deformation under off-centre or cantilevered loads.	Generally suitable for applications with uniform loads and low torque.	Provides a robust motion platform for complex applications involving high dynamics and high precision.
Load capacity	High. The ball circulation system is optimised, featuring a large number of balls, resulting in rated static and dynamic load capacities far exceeding those of low-assembly models of the same specification.	Medium.	Enables more compact equipment design or higher load capacities within the same space.
Operational accuracy	High. Available in multiple precision grades, including Standard (N), High (H) and Precision (P). The guide rails are precision-ground to ensure excellent straightness.	Primarily standard precision.	Forms the foundation for achieving high positioning accuracy and repeatability.
Ease of installation	The ‘high-assembly’ design simplifies installation. It is relatively tolerant of the flatness and levelness of the mounting surface, making it easier to achieve optimal operating conditions.	More sensitive to the accuracy of the mounting surface.	Reduces equipment assembly complexity and commissioning time, whilst enhancing reliability.
Model classification	CA Type: Flanged carriage, side-mounted, saving installation height space. HA Type: Square-shaped slider, top-mounted, offering secure and straightforward installation.	Typically a mainstream mounting configuration.	Offers flexible mounting options to suit different structural designs.

Main Technical Parameters and Selection Guide
1. Accuracy Grade: Typically offers multiple options from standard grade (N) to ultra-precision grade (SP), meeting different needs from general automation to ultra-precision machine tools.
2. Preload Grade: Offers options of no preload (C0), light preload (C1), medium preload (C2), and heavy preload (C3). Higher preload results in higher rigidity, but also slightly increases friction and temperature rise.
3. Sealing and Lubrication:
End seals: Standard configuration, effectively preventing dust ingress.
Bottom seals: Available on some models, providing bottom protection.
Grease nipple: Convenient for daily maintenance and lubrication.
4. Selection Points:
Confirm dimensions: Select the guideway width (e.g., HGH15, HGH20, HGH30, etc.) based on load, torque, and space.
Select model: Choose CA (flange type) or HA (square type) slider based on installation space and method.
Determine accuracy and preload: Select the accuracy grade and preload grade based on motion accuracy and rigidity requirements.

Applications
The High Assembly HGH-CA/HA Series Linear Guideway, with its comprehensive and balanced superior performance, is widely used in:
CNC machine tools: X/Y/Z axes of machining centers, CNC milling machines, and lathes.
Precision automation: Linear motion units of laser cutting/welding machines, semiconductor packaging equipment, and precision measuring machines.
Industrial robots: Seventh axis (ground rail) of large robots, guiding mechanisms of handling robots.
Special equipment: High-demand fields such as medical devices, printing machinery, and glass cutting equipment.

The High Assembly HGH-CA/HA Series Linear Guideway is a "versatile cornerstone product" in the field of industrial linear motion. It successfully achieves the optimal balance between high rigidity, high load capacity, high precision, and ease of installation. Choosing this series means you are selecting a solution for your equipment that has been proven reliable and high-performing in global markets for decades, representing a solid step towards building stable, precise, and efficient automated systems.

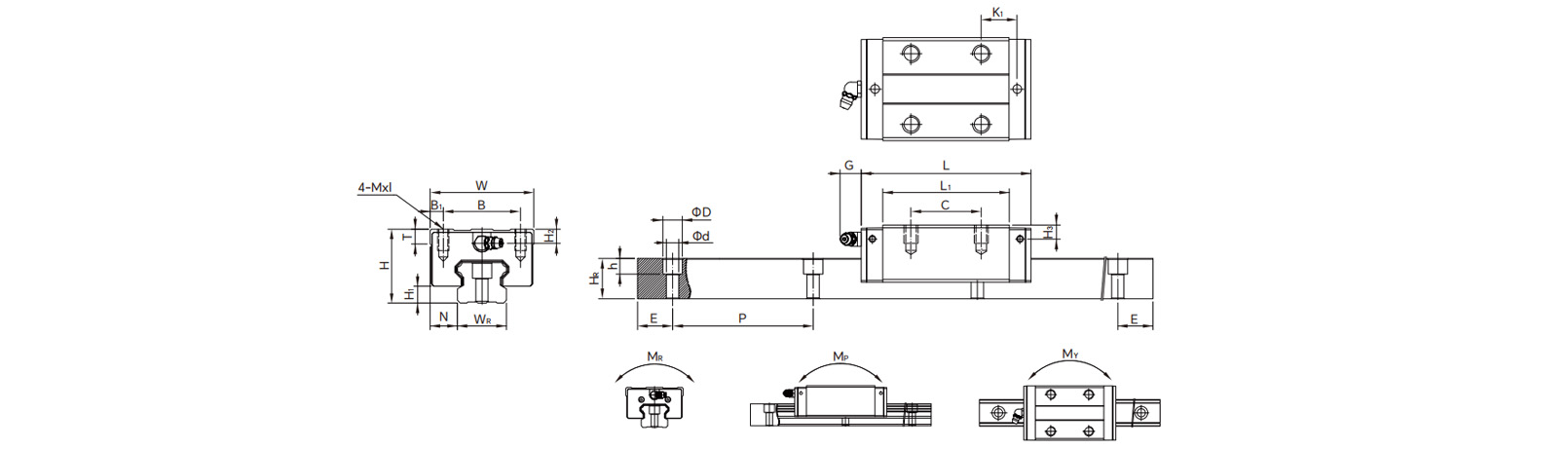

_Parameters

Model No.	Dimensions of Assembly (mm)							Dimensions of Block (mm)								Dimensions of Rail (mm)							Mounting Bolt for Rail	Basic Dynamic Load Rating	Basic Static Load Rating	Static Rated Moment (kgf.m)			Weight
	H	H1	N	W	B	B1	C	L1	L	K1	G	M×I	T	H2	H3	WR	HR	D	h	d	P	E	(mm)	C(kN)	C0(kN)	MR kN-m	Mp kN-m	MY kN-m	block kg	Rail kg/m
HGH15CA	28	4.3	9.5	34	26	4	26	39.4	61.4	10	5.3	M4×5	6	7.95	7.7	15	15	7.5	5.3	4.5	60	20	M4x16	11.38	16.97	0.12	0.10	0.10	0.18	1.45
HGH20CA	30	4.6	12	44	32	6	36	50.5	77.5	12.25	12	M5×6	8	6	7	20	17.5	9.5	8.5	6	60	20	M5×16	17.75	27.76	0.27	0.20	0.20	0.30	2.21
HGH20HA							50	65.2	92.2	12.6														21.18	35.9	0.35	0.35	0.35	0.39
HGH25CA	40	5.5	12.5	48	35	6.5	35	58	84	16.8	12	M6×8	8	10	9	23	22	11	9	7	60	20	M6×20	26.48	36.49	0.42	0.33	0.33	0.51	3.21
HGH25HA							50	78.6	104.6	19.6														32.75	49.44	0.56	0.57	0.57	0.69
HGH30CA	45	6	16	60	40	10	40	70	97.4	20.25	12	M8×10	8.5	9.5	13.8	28	26	14	12	9	80	20	M8×25	38.74	52.19	0.66	0.53	0.53	0.88	4.47
HGH30HA							60	93	120.4	21.75														47.27	69.19	0.88	0.92	0.92	1.16
HGH35CA	55	7.5	18	70	50	10	50	80	112.4	20.6	12	M8×12	10.2	16	19.6	34	29	14	12	9	80	20	M8×25	49.52	69.19	1.16	0.81	0.81	1.45	6.30
HGH35HA							72	105.8	138.2	22.5														60.21	91.63	1.54	1.40	1.40	1.92
HGH45CA	70	9.5	20.5	86	60	13	60	97	139.4	23	12.9	M10×17	16	18.5	30.5	45	38	20	17	14	105	22.5	M12×35	77.57	102.71	1.98	1.55	1.55	2.73	10.41
HGH45HA							80	128.8	171.2	28.9														94.54	136.46	2.63	2.68	2.68	3.61
HGH55CA	80	13	23.5	100	75	12.5	75	117.7	166.7	27.35	12.9	M12×18	17.5	22	29	53	44	23	20	16	120	30	M14×45	114.44	148.33	3.69	2.64	2.64	4.17	15.08
HGH55HA							95	155.8	204.8	36.4														139.35	196.2	4.88	4.57	4.57	5.49
HGH65CA	90	15	31.5	126	76	25	70	144.2	200.2	43.1	12.9	M16×20	25	15	15	63	53	26	22	18	150	35	M16×50	163.63	215.33	6.65	4.27	4.27	7.00	21.18
HGH65HA							120	203.6	259.6	47.8														208.36	303.13	9.38	7.38	7.38	9.82
