C5 Grinding / Rolled Ball Screw

Home · Products · Ball Screw · C5 Grinding / Rolled Ball Screw
  • C5 Grinding / Rolled Ball Screw
  • C5 Grinding / Rolled Ball Screw

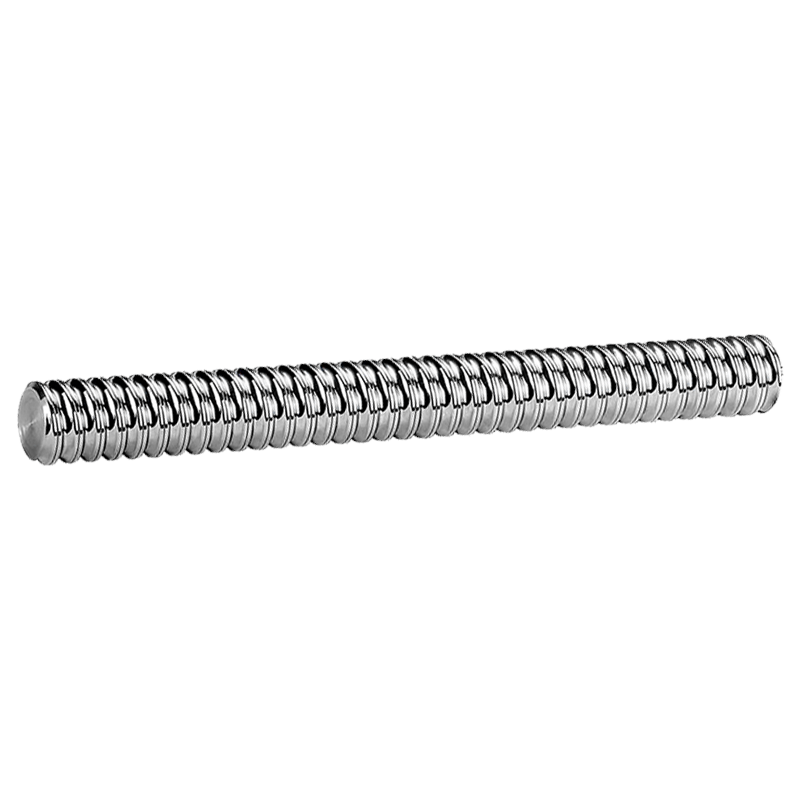

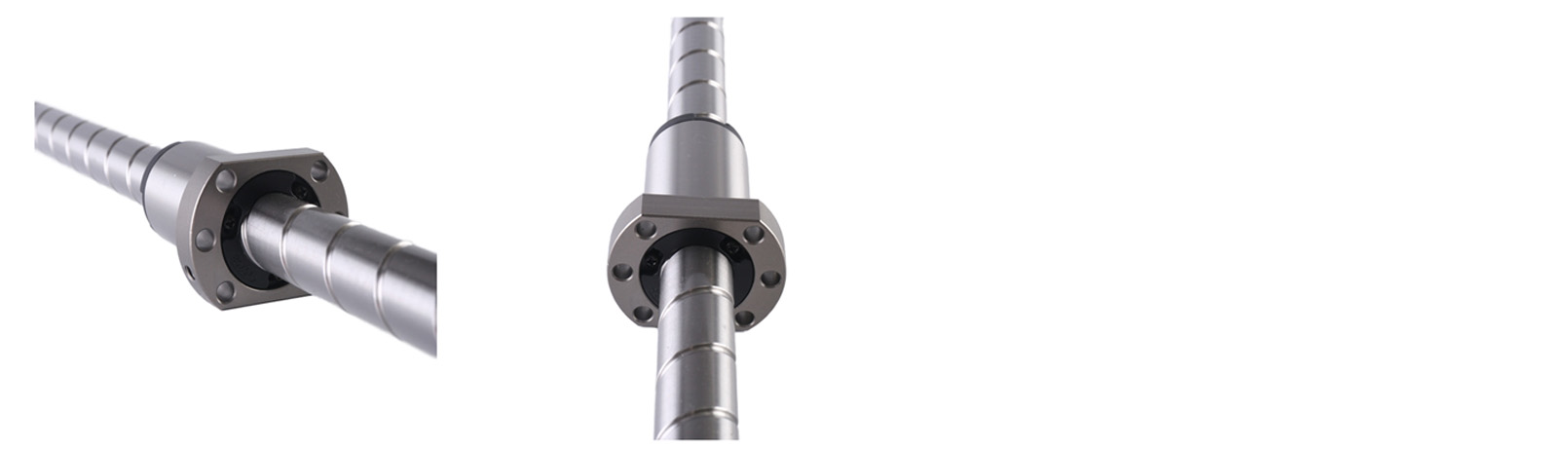

C5 Grinding / Rolled Ball Screw

C5 Grinding / Rolled Ball Screw

C5 cyclone milling ball screws utilize cyclone milling technology for efficient and environmentally friendly roughing/semi-finishing, ultimately achieving C5-grade precision. It combines the efficiency and environmental advantages of cyclone milling in the manufacturing stage with the precision and reliability of C5-grade performance in use.

Inquiry
PREV: Double Nut DFU Series Ball Screw Next: No next article

Technology

"Cyclone Milling" Technology: A Machining Technology Balancing Efficiency and Environmental Protection

Feature Dimensions Detailed Explanation
Core Definition According to international standards (such as JIS), medium to high precision levels fall into the precision category.
Main Advantages High positioning accuracy: The cumulative lead error within each 300mm stroke is very small, ensuring that the equipment moves accurately and stably to the target position, which is the foundation for achieving high-precision machining and measurement.
Preload Preload is typically provided (such as oversized steel ball preload or offset preload) to eliminate axial backlash and ensure drive rigidity, rapid response, and no backlash or reverse rotation.
Typical Applications It is widely used in scenarios where stable precision is required, such as precision CNC machine tools, injection molding machines, semiconductor manufacturing equipment, and high-precision automated production lines.

"Cyclone milling" is a highly efficient milling process for machining threads (including ball screw thread raceways). Simply put, it uses a high-speed rotating cutter head to simultaneously mill a slowly rotating workpiece to form threads.

Its advantages primarily stem from the process itself, bringing the following characteristics to ball screws:

1. High-efficiency and Green Production: Its dry cutting (or micro-spray cooling) method eliminates the need for traditional cutting fluid, significantly reducing waste liquid treatment, making it a highly efficient, green, and low-consumption machining method.

2. High machining efficiency: Due to the high-speed intermittent cutting involving multiple cutting tools simultaneously, its metal removal rate is far higher than that of traditional turning, increasing machining efficiency by several times or even more than ten times, making it especially suitable for mass production.

3. Suitable for large and hardened workpieces: Particularly suitable for machining large ball screws (often exceeding 600mm in length) with a large length-to-diameter ratio and relatively poor rigidity, as well as hardened materials with a hardness of HRC60 or higher, achieving "milling instead of grinding".


Grind / Rolled Ball Screw Specification Φ6~32

Model No. Accuracy
Grade		 Threading Direction Number of Grooves Standard Code of Shaft Type of Nut Max Length of Shaft Weight
d l Da R/L mm Kg/m
4 1 0.8 C10, C7, C5 R 1 SCR0401 K 1000 0.10
6 1 0.8 C10, C7, C5 R 1 SCR0601 K 1000 0.22
8 1 0.8 C10, C7, C5 R 1 SCR0801 K 1000 0.39
2 1.2 C10, C7, C5 R 1 SCR0802 K 0.39
2.5 1.2 C10, C7, C5 R 1 SCR082.5 K, BSH 0.39
10 2 1.2 C10, C7, C5 R 1 SCR1002 K, BSH 3000 0.61
4 2 C10, C7, C5 R 1 SCR1004 K, BSH 0.61
12 2 1.2 C10, C7, C5 R 1 SCR1202 K 3000 0.88
4 2.38 C10, C7, C5 R/L 1 SCR1204 U, BSH 0.87
5 2.5 C10, C7, C5 R 1 SCR1205A V, U, BSH, H, A, S 0.87
14 2 1.2 C10, C7, C5 R 1 SCR1402 K 1800 1.21
4 2.5 C10, C7, C5 R 1 SCR1404 BSH 3000 1.2
16 4 2.381 C10, C7, C5 R 1 SCR1604(N) V, I, U, BSH 4000 1.57
5 3.175 C10, C7, C5 R/L 1 SCR1605 V, NI, NU, BSH 1.56
10 3.175 C10, C7, C5 R/L 2 SCR1610 V, NI, NU, BSH 1.56
16 2.778 C10, C7, C5 R 4 SCR1616 Y 1.55
32 2.778 C10, C7, C5 R 8 SCR1632 Y 1.55
20 4 2.381 C10, C7, C5 R 1 SCR2004(N) V, I, U 4000 2.45
5 3.175 C10, C7, C5 R/L 1 SCR2005 V, NI, NU, BSH, H, A, S 2.45
20 3.175 C10, C7, C5 R 4 SCR2020 V, Y, H, A, S 2.42
40 3.175 C10, C7, C5 R 8 SCR2040 Y 2.42
25 4 2.381 C10, C7, C5 R 1 SCR2504(N) I, U 6000 3.84
5 3.175 C10, C7, C5 R/L 1 SCR2505 V, NI, NU, BSH, H, A, S 3.83
10 4.762 C10, C7, C5 R/L 1 SCR2510-A NI, NU, BSH 3.81
25 3.969 C10, C7, C5 R 4 SCR2525 Y 3.79
50 3.969 C10, C7, C5 R 8 SCR2550 Y 3.79
32 4 2.381 C10, C7, C5 R 1 SCR3204(N) V, I, U 6000 6.3
5 3.175 C10, C7, C5 R/L 1 SCR3205 V, NI, NU, M, H, A, S 6.29
10 6.35 C10, C7, C5 R/L 1 SCR3210 V, NI, NU 6.23
32 4.762 C10, C7, C5 R 4 SCR3232 Y 6.22
64 4.762 C10, C7, C5 R 8 SCR3264 Y 6.22


Standard Specifications Φ40~80

Model No. Accuracy
Grade		 Threading
Direction		 Number of
Grooves		 Standard Code
of Shaft		 Type of Nut Max Length
of Shaft		 Weight
d I Da R :  L :  mm Kg/m
40  5  3.175  C10, C7, C5 R/L 1  SCR4005 V, NI, NU, H, A, S 6000  9.84
10  6.350  C10, C7, C5 R/L 1  SCR4010 V, NI, NU 9.78
20  6.350  C10, C7, C5 R 2  SCR4020 V 9.78
40  6.350  C10, C7, C5 R 4  SCR4040 Y 9.7
80  6.350  C10, C7, C5 R 8  SCR4080 Y 9.7
50  5  3.175  C10, C7, C5 R 1  SCR5005 V, H, A, S 6000  15.39
10  6.350  C10, C7, C5 R/L 1  SCR5010 V, NI, NU 15.33
20  9.525  C10, C7, C5 R 1  SCR5020 V 15.23
50  7.938  C10, C7, C5 R 4  SCR5050 Y 15.15
100  7.938  C10, C7, C5 R 8  SCR50100 Y 15.15
63  10  6.350  C10, C7, C5 R 1  SCR6310 V, NI, NU 7000  24.39
20  9.525  C10, C7, C5 R 1  SCR6320 V, NU 24.28
80  10  6.350  C10, C7, C5 R 1  SCR8010 V, NI, NU 7000  39.28
20  9.525  C10, C7, C5 R 1  SCR8020 V, NU 39.27


S/A-type Specifications Φ16~50

Model No. Accuracy
Grade		 Threading
Direction		 Number of
Grooves		 Standard Code
of Shaft		 Type of Nut Max Length of
Shaft		 Weight
d I Da R :  L :  mm Kg/m
12  10  2.5  C10, C7, C5 R 2  SSR1210 H, A, S 3000  0.87
15  5  2.778  C10, C7, C5 R 1  SSR1605 H, A, S 4000  1.37
10  2.778  C10, C7, C5 R 2  SSR1610 H, A, S 1.37
16  2.778  C10, C7, C5 R 4  SSR1616 H, A, S 1.37
20  2.778  C10, C7, C5 R 4  SSR1620 H, A, S 1.37
20  10  3.175  C10, C7, C5 R 2  SSR2010 H, A, S 4000  2.45
25  10  3.175  C10, C7, C5 R 2  SSR2510 H, A, S 6000  3.83
25  3.175  C10, C7, C5 R 4  SSR2525 H, A, S 3.83
31  10  3.969  C10, C7, C5 R 1  SSR3210 H, A, S 6000  5.89
20  3.969  C10, C7, C5 R 2  SSR3220 H, A, S 5.89
32  3.969  C10, C7, C5 R 4  SSR3232 H, A, S 5.89
38  10  6.35  C10, C7, C5 R 1  SSR4010 H, A, S 6000  8.82
20  6.35  C10, C7, C5 R 2  SSR4020 H, A, S 8.82
40  6.35  C10, C7, C5 R 4  SSR4040 H, A, S 8.82
48  10  6.35  C10, C7, C5 R 1  SSR5010 H, A, S 6000  14.12
20  6.35  C10, C7, C5 R 2  SSR5020 H, A, S 14.12
50  6.35  C10, C7, C5 R 4  SSR5050 H, A, S 14.12

Drawings


Production Capacity

Cyclone Milling Machines

LWN160-6000mm Leistritz Cyclone milling machines imported directly from
Germany, the ball screw shaft precision can be C3, C5, and C7 the max length
can be 7000mm

Rolled Thread CNC Machines

PR-40CNC Profiroll rolled thread ball screw machines imported directly from
Germany the ball screw shaft precision can be C5, C7 -C10

Rolled Thread CNC Machines

ST-20.2 and ST-347.7 rolled thread ball screw machines from TaiWan.
The ball screw shaft precision can be C7 - C10

Ball Screw Assembly Workshop

We conduct nut assembly in a constant temperature workshop,  all workers
having decades of work experience and zero clearance between the screw
and nut.

Ball Screw Assembly Workshop

One ball screw shaft matches one ball screw nut. Because each ball screw
shaft has a very tiny different tolerance. There are dozens of different
ball sizes for different screw shaft.
Our ball screw shaft and nut can be interchanged with the Taiwan
TBI ball screw shaft and nut very well.
