Locknut RN Series Ball Screw Bracket

Main Technical Parameters and Design
1. Precision Anti-loosening Principle:
Eccentric thread design: The nut's thread uses a special eccentric tooth profile. When tightened with the standard thread on the ball screw shaft end, it generates a continuous radial locking force, effectively preventing loosening.
Anti-loosening washer combination: The standard configuration includes an internal-toothed anti-loosening washer (spline washer). During installation, the inner teeth of the washer engage with the keyway of the ball screw shaft, and the outer teeth engage with the groove on the nut's end face. Through tooth engagement, it completely prevents any rotation of the nut relative to the shaft.

2. Materials and Process:
Made of high-strength alloy steel and heat-treated to ensure sufficient strength and toughness, preventing fracture or deformation under high pre-tightening force.
Key contact surfaces (threads, end faces) are precision ground to ensure dimensional accuracy and mating performance.

3. Specifications and Matching:
The size series is fully compatible with the ball screw shaft end thread diameter (such as M6, M8, M10...M30, etc.) and the support base series.
Depending on different ball screw shaft diameters and load requirements, standard and thickened versions are available to provide a larger locking contact area and torque capacity.

Applications
The Locknut RN Series Ball Screw Bracket must be used in all ball screw systems that use angular contact bearing fixed end support bases, including but not limited to:
The feed axis fixed end of all CNC machine tools.
The joint or linear axis drive end of industrial robots. The transmission systems of high-precision automated equipment (laser machines, injection molding machines, measuring machines).
Any ball screw application requiring zero backlash and high rigidity transmission.

Although small, the Locknut RN Series Ball Screw Bracket is a crucial mechanical safety component in the high-precision ball screw transmission chain. Through precise mechanical design, it fundamentally solves the risk of loosening under high-speed and heavy-load conditions, converting rotational power into linear thrust without loss. Choosing original or high-quality RN series locknuts is a necessary guarantee for the safety and stable performance of your entire precision transmission system.

_Parameters

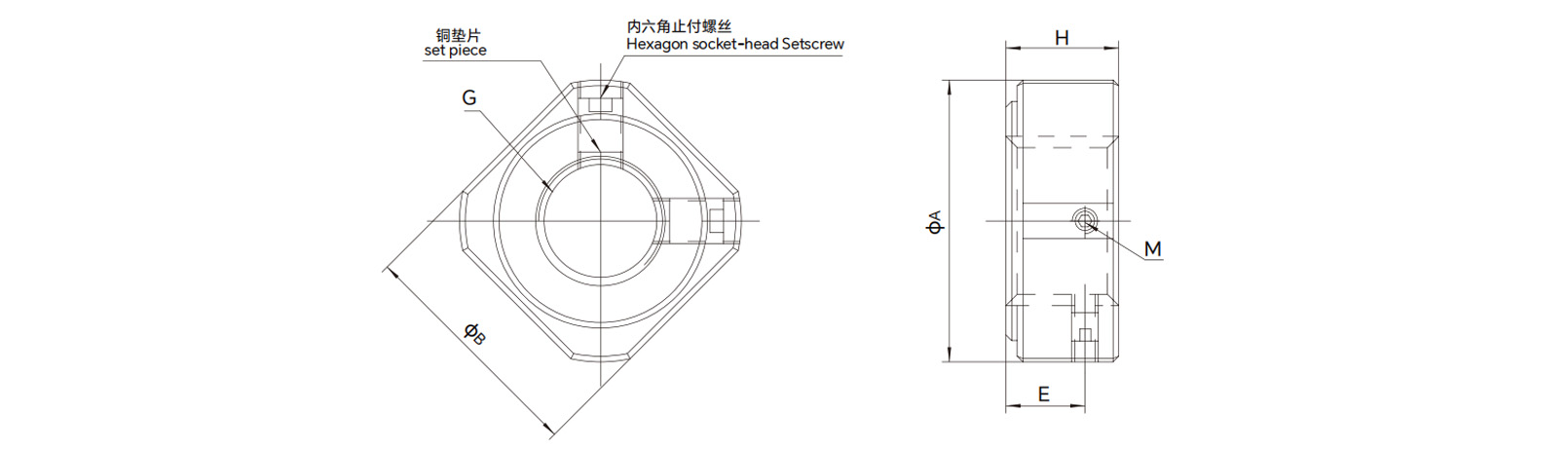

_Drawings
