SHF Series Aluminum Horizontal Shaft Support

Home · Products · Linear Motion Slide Units · SHF Series Aluminum Horizontal Shaft Support
  • SHF Series Aluminum Horizontal Shaft Support
SHF Series Aluminum Horizontal Shaft Support

SHF Series Aluminum Horizontal Shaft Support

The SHF horizontal series is a linear bearing support block made of high-strength aluminum alloy, optimized for horizontal (X/Y axis) mounting. Its design focuses on handling lateral loads, cantilevered moments, and high-speed vibrations in horizontal motion. Through its unique low center of gravity, wide base, and side-mounting design, it provides superior anti-tilting capability, high-rigidity connection, and excellent vibration damping performance for horizontal motion units, making it the ideal foundation for high-speed, high-precision horizontal motion.

Inquiry
PREV: No previous article Next: SK Series Aluminum Vertical Shaft Support

Technology

Features and Advantages

Features Description
Designed specifically for horizontal reinforcement The low-centre-of-gravity, wide-base design maximises resistance to overturning moments, ensuring stable positioning during high-speed reciprocating motion.
High lateral rigidity installation It features a wide side mounting surface that fits securely against the equipment’s side panel, delivering exceptional lateral connection rigidity with a short, direct force transmission path.
Excellent dynamic stability The optimised structure results in a high natural frequency, effectively absorbing and damping vibrations during operation, thereby ensuring smooth motion and positioning accuracy at high speeds.
Saves vertical space The side-mounting configuration makes it extremely compact in the vertical direction, making it ideal for multi-layer module stacking or high-density layouts within enclosures with limited height.
Lightweight, precision-engineered Whilst retaining the weight-saving advantages of aluminium alloy, all bearing contact surfaces are precision-machined to ensure guiding accuracy.

Applications
High-speed horizontal modules: Linear motor modules, precision XY translation stages, horizontal axis support for high-speed pick-and-place robots.
Automation and inspection equipment: Vision inspection scanning axes, laser marking machine X/Y axes, support for PCB conveying and positioning mechanisms.
Lightweight processing and robotics: Moving axes of small CNC machine tool worktables, guidance support for SCARA robot horizontal arms.

The SHF series aluminum horizontal shaft support is the engineer's solution for conquering dynamic challenges in the horizontal direction. It redefines the standard for horizontal support, integrating anti-tilting, vibration damping, and high rigidity. Choosing the SHF horizontal series means you are selecting a well-considered performance foundation for your horizontal motion system, transforming the risk of instability into solid, reliable dynamic performance – a wise choice for building top-tier horizontal motion platforms.

Parameters

Model No. Main dimensions and Mounting dimensions (mm) Clamping
bolt
designation		 Mounting
bolt
designation		 Weight
kg
Seal Type Shaft Diameter L T F H G B 2S
SHF-8 8  43  10  - 24  - 32  5.5  M4 M5 0.013
SHF-10 10  43  10  - 24  - 32  5.5  M4 M5 0.013
SHF-12 12  47  13  4  28  25  36  5.5  M4 M5 0.02
SHF-13 13  47  13  4  28  25  36  5.5  M4 M5 0.02
SHF-16 16  50  16  6  31  28  40  5.5  M4 M5 0.027
SHF-20 20  60  20  8  37  34  48  7  M5 M6 0.04
SHF-25 25  70  25  10  42  40  56  7  M5 M6 0.06
SHF-30 30  80  30  12  50  46  64  9  M6 M8 0.11
SHF-35 35  92  35  14  58  50  72  12  M8 M10 0.38
SHF-40 40  105  40  16  67  56  80  12  M10 M10 0.51
SHF-50 50  122  50  19  83  70  96  14  M12 M12 0.89
SHF-60 60  140  60  23  95  82  112  14  M12 M12 1.5

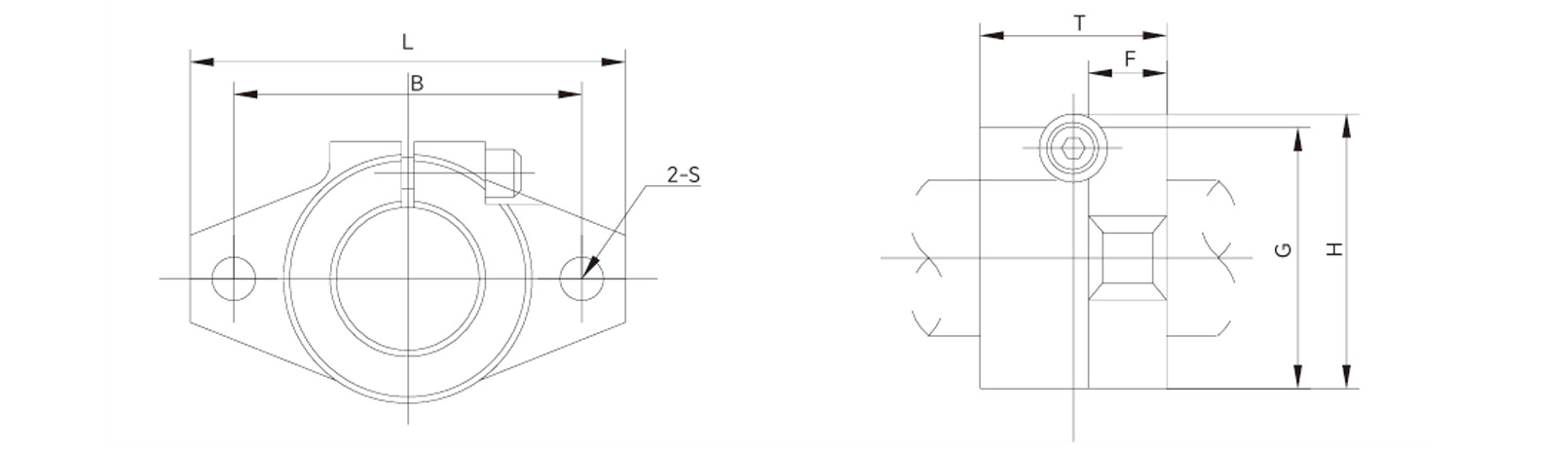

Drawings
