| Performance Characteristics |

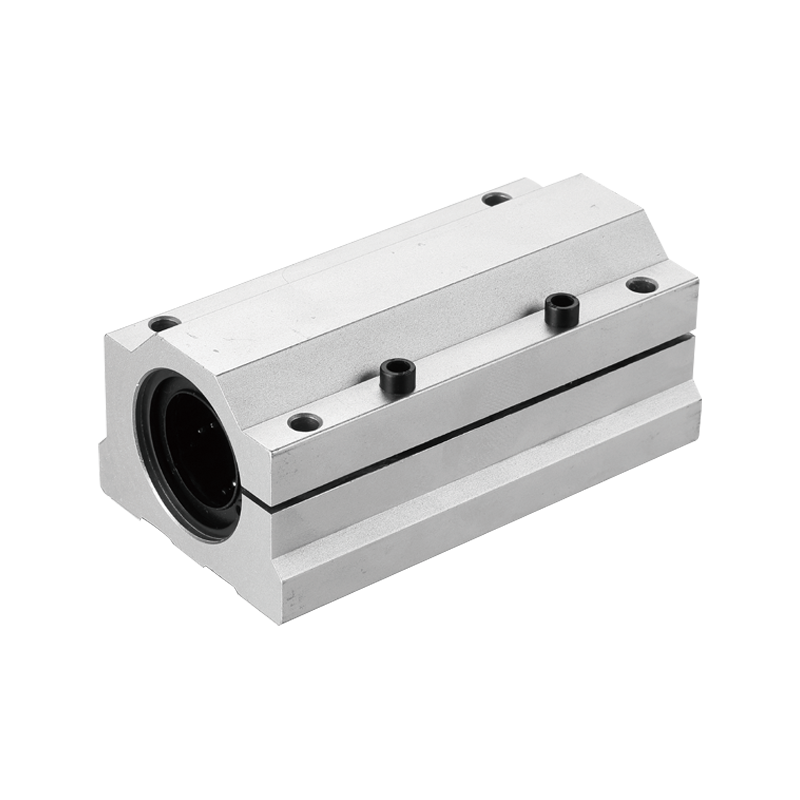

SCEL-UU Series (Extended European Standard Fixed Type) |
EAJL-UU Series (Extended European Standard Adjustable) |
Core Values and Selection Guide |
| Core Positioning |
A heavy-duty standard solution featuring European standard interfaces, superior rigidity and exceptional stability. |
European standard interface, superior rigidity, zero backlash, and a serviceable heavy-duty precision solution. |
Choose SCEL for European-standard heavy-duty applications; choose EAJL for European-standard heavy-duty applications where zero backlash and long-term precision are required. |
| Interfaces and Structure |
Extended slide block + European standard interface + fixed structure. Features an extra-long slide block contact surface for maximum rigidity, whilst the interface complies with European standards. |
Extended slide block + European standard interface + adjustable structure. Side adjustment screws are integrated into the extended European standard structure. |
‘Extended’ delivers the ultimate in physical performance, ‘European-standard’ ensures system compatibility, and ‘adjustable’ brings precision to life. |
| Load Capacity and Rigidity |
Extremely high. The extended design delivers immense load and torque capacity alongside exceptional static and dynamic rigidity, making it one of the ultimate physical solutions for heavy-load and off-centre load challenges. |
Building upon the SCEL’s superior rigidity, reverse play is eliminated through adjustment, achieving equally exceptional rigidity in both directions. |
Provides a rock-solid foundation for the core motion components of heavy-duty equipment (such as large machine tool attachments and heavy-duty robotic arms). |
| Smooth Operation |
Excellent. The multi-point support of the long slide ensures exceptionally smooth and stable operation, effectively absorbing and suppressing vibration. |
Excellent, with superior consistency. Zero backlash ensures no impact or lag during direction changes, resulting in smoother motion. |
Enables high-precision machining, measurement and assembly under heavy loads. |
| Long-term Accuracy Retention |
Outstanding. The vast contact area reduces wear rates and ensures excellent precision retention. |
Outstanding. The adjustable feature allows compensation for microscopic gaps caused by wear after prolonged heavy-duty use, which is key to maintaining long-term precision in heavy-duty equipment. |
The EAJL series offers ‘full lifecycle precision management’ capabilities for heavy-duty European standard equipment. |
| Ease of Integration |
High. As a pre-assembled European standard heavy-duty unit, it integrates directly and securely with European heavy-duty motors and drive components. |
High. Installation is identical to SCEL, with only one additional adjustment step required during commissioning. |
Integrates the most complex heavy-duty guidance systems, simplifying them to standard bolted connections. |
| Typical Applications |
Core guide axes for large-scale testing equipment, heavy-duty laser processing heads and European heavy-duty automated production lines exported to Europe. |
Accessory spindles for high-precision European CNC machine tools (e.g. heavy-duty rotary heads), large-scale semiconductor handling equipment, and aerospace assembly jigs. |
Both are benchmark motion components for the high-end European heavy-duty market. |
